    搖擺篩您現在所在的位置: 首頁 > 搖擺篩
  • 搖擺篩

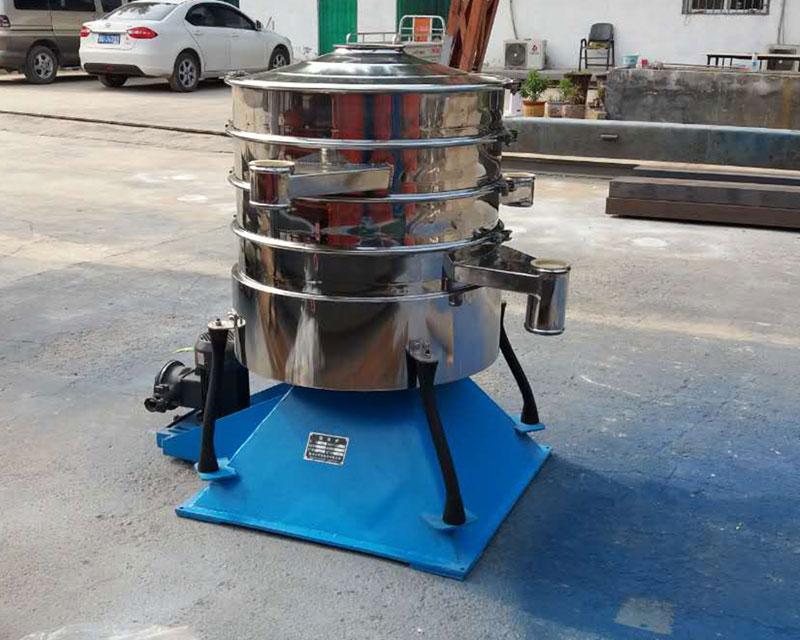

搖擺篩

類 別: 搖擺篩

描 述:   搖擺篩的設計是為了滿足大產量,高密度篩分的廠家而特殊設計的一種高效篩分機,簡單的篩分是雙眼注視雙手篩分。搖擺篩分機就是對此的機械模擬,它是目前有效的模擬了人工篩分運動的有效原理(篩分精度、效率、篩網壽命均是常規圓篩的5-10倍).適合所有精細和超細范圍的粉末以及特別難以處理的物料的篩分。   ⊕

24小時服務熱線
13938768717
產品詳情

  搖擺篩的設計是為了滿足大產量,高密度篩分的廠家而特殊設計的一種高效篩分機,簡單的篩分是雙眼注視雙手篩分。搖擺篩分機就是對此的機械模擬,它是目前有效的模擬了人工篩分運動的有效原理(篩分精度、效率、篩網壽命均是常規圓篩的5-10倍).適合所有精細和超細范圍的粉末以及特別難以處理的物料的篩分。

  ⊕ 特點

  高達5倍的單位面積產出;精確到6級分離,篩分效率高達90%-95%;使用硅橡膠球、超聲波等高效清網裝置系統,篩孔不會堵塞。密閉除塵,操作安全;加速度比振動篩低4.5倍,篩分零件壽命提高而維護減少;噪聲<75分貝。優化重理均衡,地基動態負荷低。

  ⊕ 工作原理

  l 基本的回轉運動與人工篩分相類似。偏心率從25到40mm可調,低速V型皮帶驅動從120到360rpm可調

  l 每一種產品的停留時間可以通過搖擺篩的徑向與切角朝驅動軸線方向進行調整

  l 因此建立水平與拋擲三維翻滾運動。物料從中心到外緣在整個篩面上均勻分散,從而以螺旋運動往軸向傳播。細小顆粒從而完成了整個篩分過程。

  l 水平與垂直加速度隨著粒子的運動而增加,接近篩孔尺寸的顆粒隨之成功分離;較大顆粒被運到出口處,出口處由一個可調節的導向裝置控制流量,該導向裝置是控制物料停留時間的另一個因素。

  l 此次過程在每篩層之間重復進行

  適用行業

  化學、食品與香料、塑料、礦業、醫藥、木業及膠合板、冶金、橡膠、飼料、化肥、糖 鹽業、再生行業

型號 Model

THYS600

THYS1000

THYS1200

THYS1600

THYS2000

THYS2400

THYS2600

直徑Diameter(mm)

600

1000

1200

1600

2000

2400

2600

篩分面積Screening surface (m2)

0.292

0.785

1.13

1.83

2.63

4.52

5.31

層數Layer

1-5

1-5

1-5

1-5

1-5

1-5

1-5

功率 Power

0.25

1.5

2.2

2.2

4.0

5.5

5.5

?

  Tumbler screen

  Tumbler screen is an efficient sieving machine which is designed to meet the large output, high-density sieving of the manufacturers. The simplest sieving is hand sieving by eye. This is mechanically simulated by the tumbler screen, which takes the most effective simulation of the artificial sieving movement (sieving precision, efficiency, sieve life is 5-10 times than usual sieving machine).Tumbler screens are suitable for all powders and granular materials in the fine and ultra fine range , especially for materials which are difficult to sieve.

  Features

  Up to 5 times output per unit area; accurate to 6 Level separation, sieving efficiency is as high as 90% -95%; when using the silicone rubber balls, ultrasonic and other high-performance mesh-cleaning device system, the mesh hole will not be blocked. whole sealing structure design, safety operation; the acceleration is 4.5 times lower than vibrating sieve, sieving parts’ increases the life expectancy and reduces maintenance; noise<75 dB. Re-optimization is balanced, ground-based dynamic load is low.

  ⊕ Working Principle

  l Basic rotary motion is similar to hand screening .The eccentricity is adjustable from 25 to 40mm, low-speed V-belt drive is adjustable from 120 to 360rpm

  l Each product’ dwell time can be adjusted in a radial and tangential angle ,towards the drive axis.

  l Therefore, establishing the horizontal and throwing three-dimensional rolling movement, materials are evenly dispersed on the entire sieve surface from the center to the outer edge, and thus spread towards the axis by spiral movement. Small particles are then finished in the whole sieving process.

  l The horizontal and vertical acceleration are increased with the movement of the particles, and then the particles which are close to mesh size will be successfully separated; The larger particles are transported to the exit, the flow can be controlled by a regulated oriented device at the exit, the oriented device is another factor which controls the dwell time of the materials.

  l The process is repeated in each layer.

  Scope of application

  Chemical, food and spices, plastics, mining, pharmaceutical, wood and plywood, metallurgy, rubber, fodder, fertilizer, sugar, salt, recycling industry
