    提升機您現在所在的位置: 首頁 > 提升機
  • 提升機

提升機

類 別: 提升機

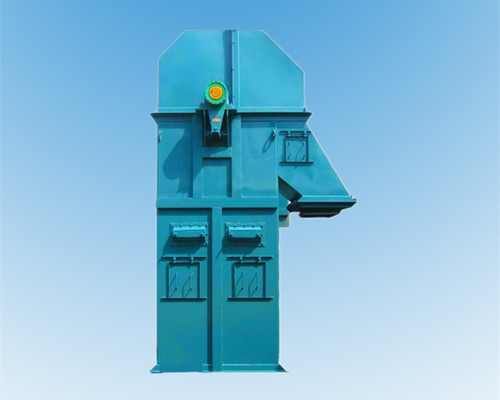

描 述:   斗式提升機具有輸送量大,提升高度高,運行平穩可靠,壽命長顯著優點,本提升機適于輸送粉狀,粒狀及小塊狀的無磨琢性及磨琢性小的物 料,如:煤、水泥、石塊、砂、粘土、礦石等,由于提升機的牽引機構是環行鏈條,因此允許輸送溫度較高的材料(物料溫度不超過250 ℃)。一般輸送高度高可達40米.TG型

24小時服務熱線
13938768717
產品詳情

  斗式提升機具有輸送量大,提升高度高,運行平穩可靠,壽命長顯著優點,本提升機適于輸送粉狀,粒狀及小塊狀的無磨琢性及磨琢性小的物 料,如:煤、水泥、石塊、砂、粘土、礦石等,由于提升機的牽引機構是環行鏈條,因此允許輸送溫度較高的材料(物料溫度不超過250 ℃)。一般輸送高度高可達40米.TG型高可達80米。

  TD型斗式提升機:

  GTD、GTH高效斗式提升機特點與用途:

  1、GTD與GTH型斗式提升機具有輸送量大、提升高度高、運行平穩、使用壽命長等特點。適用較干的散狀物料垂直輸送,可廣泛地應用于建材、化工、煤炭、電力、港口運輸?shù)刃袠I(yè)的物料運輸系統。

  2、GTD型為膠帶式、以EP輸送帶和鋼絲繩芯膠帶為牽引件。GTH型為環鏈?zhǔn)?,以高?qiáng)度環鏈為牽引件,該鏈條按GB/T12718-91《礦用高強度圓環鏈》制造。

  3、本機的頭尾部及中部機殼作了密封處理,物料及粉塵極少外溢,極少造成環境污染。

  4、本機為混合或重力卸料,掏取式喂料。

  5、GTH型上輪為組裝式鏈輪、輪緣用高強度鋼螺栓聯在輪體上,在鏈輪磨損后,只需要換輪緣,維修方便,節省原材料,降低維修費用。下輪改為凸緣輪,徹底改變了原雙鏈輪成本高,易脫鏈的缺陷。

  6、GTD型上輪采用斜邊光輪、該輪具有自定心的作用,可避免輸送帶跑偏。

  7、本機型在下部設有料位器和速度控制器,用戶可根據需要造取,以達到電自動控制的目的。

  8、本機漲緊裝置有兩種,對于提升高度不大于25m高的機型,一般選用絲桿漲緊,對于提升高度大于25m的機型,選用重力漲緊,特殊要求,用戶訂貨時請說明。

  GTD, GTH bucket elevator efficient features and purposes:

  1, GTD and GTH-type bucket elevator with throughput, and enhance the high degree of high, stable, long life and so on. The application of dry bulk materials than vertical transmission, can be widely used in building materials, chemicals, coal, electricity, ports and transportation of material transport systems industry.

  2, GTD-style-type for the tape to EP and steel cord conveyor belt pieces for traction. GTH ring type chain to high-strength chain for traction case, the chain by GB/T12718-91 "Mining high-intensity ring chain" manufacturing.

  3, the tail of the plane of the first case were sealed and central processing, materials and dust rarely spill, causing very little environmental pollution.

  4, the local mixed or gravity discharge, out check-type feed.

  5, GTH-type the last round for the assembled sprocket, flange bolts with high strength steel body is in rotation, the wear in the sprocket, just changing the rims, maintenance

  convenience, saving raw materials, reduce maintenance costs. Replaced by the next round round flange, completely changed the original double-chain costs are high, easy to defect from the chain.

  6, GTD-type halo hypotenuse using the last round, the round has the role of self-centering, a conveyor belt to avoid deviation.

  7, the models in the lower level and has a speed controller, the user can be made in accordance with the need to take in order to achieve the purpose of electric automatic control.

  8, this machine up tight, there are two devices, for enhancing a high degree of not more than 25m high models, the general choice of screw up tight and a high degree of more than 25m to upgrade the models, selection of gravity up tight, the special requirements of customers orders Please indicate when.

  (2)TD型斗提機備有四種料斗:Q型(淺斗)、H型(弧底斗)、Zd型(中深斗)、Sd型(深斗)

  Four types of the hopper :Q(shallow),H(Arc bottom)、Z(Mid-deep)、Sd(Deep)

  技術參數,technical parameter:

斗提機型號

Modell

TD100

TD160

TD250

TD315

料斗型式

Hopper

Q

H

Q

H

Zd

Sd

Q

H

Zd

Sd

Q

H

Zd

Sd

輸送量(m3/h)

Capacity

4

7.6

9

16

16

27

20

36

38

59

28

50

42

67

料斗容積(L)

Hopper capacity

0.15

0.3

0.49

0.9

1.2

1.9

1.12

2.24

3.0

4.6

1.95

3.55

3.75

5.8

料斗運行速度(m/s)

Elevating Speed

1.4

1.4

1.6

1.6

Rolling speed(r/min)

67

67

61

61

?

斗提機型號

Model

TD400

TD500

TD630

料斗型式

Hopper

Q

H

Zd

Sd

Q

H

Zd

Sd

Q

H

Zd

Sd

輸送量(m3/h)

Capacity

40

76

68

110

63

116

96

154

-

142

148

238

料斗容積(L)

Hopper Capacity

3.1

5.6

5.9

9.4

4.84

9.0

9.3

14.9

-

14

14.6

23.5

料斗運行速度(m/s)

Elevating speed

1.8

1.8

2.0

滾筒轉速(r/min)

Rolling speed

55

55

48

 ?、俦碇辛隙啡莘e為料斗盛水時容積,與實際填充量相近,故輸送量計算時未考慮填充系數ψ,具體選型時應根據物料度,求得ψ修正值,以此值修正表中所給輸送量。

  Note:The paramer is just for refence,we can provide the suitale model by the material to elevate.
