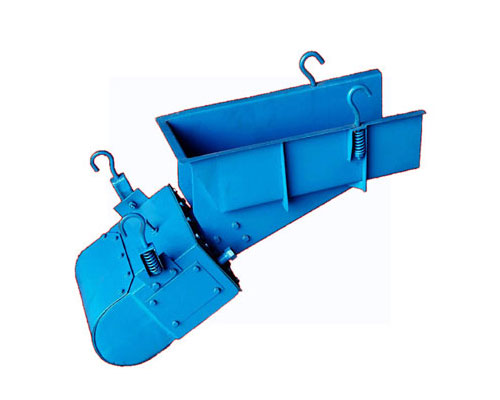

GZ系列電磁振動給料機
類 別: 給料機
描 述: GZ系列電磁振動給料機 用途和特點: 電磁振動給料機廣泛使用在冶金、煤炭、電子、機械、化工、建材、輕工、糧食等工礦企業中,在生產流程中,用于塊狀、顆粒狀、粉狀物料從貯料倉或漏斗中定量、均勻、連續地給到受料裝置中去。本設備有五種類型:寬槽型、平槽型、輕槽型、封閉型、上振型、基本型,可滿足不
GZ系列電磁振動給料機
用途和特點:
電磁振動給料機廣泛使用在冶金、煤炭、電子、機械、化工、建材、輕工、糧食等工礦企業中,在生產流程中,用于塊狀、顆粒狀、粉狀物料從貯料倉或漏斗中定量、均勻、連續地給到受料裝置中去。本設備有五種類型:寬槽型、平槽型、輕槽型、封閉型、上振型、基本型,可滿足不同物料的特性及工藝要求。
與其他給料設備相比具有以下特點:
(1)電氣控制采用可控硅半波整流線路,可無級調節給料量,可用于自動控制的生產流程中,實現生產自動化。
(2)無轉動零部件,不需潤滑,結構簡單,維修方便。
(3)物料呈微拋運動,料槽磨損小。
(4)采用合金鋼板制成的料槽,可適用輸送高溫、磨損嚴重及有腐蝕性的物料等。
Application and feature
Electromagnetic vibrating feeder has been widely used in metallurgy, coal, electronics, machinery industry, chemical industry, building materials, light industry, food and other mining industries. In the production process, it delivers the anti-block materials, granular, powdery materials from the storage silo or funnel to the affected device quantitatively, uniformly and continuously.
Comparing with other type feeder, it has the following characteristics:
(1) Electric control uses half-wave silicon-controlled rectifier circuit. It can adjust to the charge level, and it can be used for automatic control of the production process, so that realize production automation.
(2) It has no rotating parts, no need to lubrication, simple structure, and easy to maintenance.
(3) Material is micro-throwing movement, and silo has small wear.
(4) It uses the silo which is made of alloy steel plate. It’s applicable to transport heat, wear and corrosive materials, etc
?
類型 Type |
型號Model |
產量 Productivity (t/h) |
進料粒度Feeding size (mm) |
雙振幅Double amplitude (mm) |
頻率Vibration frequency (t/min) |
電壓Voltage (V) |
電流 Current(A) |
有效 功率Active power (KW) |
重量Weight |
||
水平Level |
-10° |
工作 電流Working current |
表示電流Token current |
||||||||
基本型Basic type |
GZ1 |
5 |
7 |
50 |
1.75 |
3000 |
220 |
1.34 |
1.0 |
0.06 |
77 |
GZ2 |
10 |
14 |
50 |
3.0 |
2.3 |
0.15 |
151 |
||||
GZ3 |
25 |
35 |
75 |
4.6 |
3.8 |
0.20 |
233 |
||||
GZ4 |
50 |
70 |
100 |
8.4 |
7.0 |
0.45 |
460 |
||||
GZ5 |
100 |
140 |
150 |
12.7 |
10.6 |
0.65 |
668 |
||||
GZ6 |
150 |
210 |
200 |
1.5 |
380 |
16.4 |
13.3 |
1.5 |
1271 |
||
GZ7 |
250 |
350 |
300 |
24.6 |
20 |
2.5 |
1920 |
||||
GZ8 |
400 |
560 |
300 |
39.4 |
32 |
4.0 |
3040 |
||||
GZ9 |
600 |
840 |
500 |
47.6 |
38.6 |
5.5 |
3750 |
||||
GZ10 |
750 |
1050 |
500 |
39.4×2 |
32×2 |
4.0×2 |
6491 |
||||
GZ11 |
1000 |
1400 |
500 |
47.6×2 |
38.6×2 |
5.5×2 |
7680 |
||||
上振型Top vibration type |
GZ3S |
25 |
35 |
75 |
1.75 |
220 |
4.6 |
3.8 |
0.20 |
242 |
|
GZ4S |
50 |
70 |
100 |
8.4 |
7.0 |
0.45 |
457 |
||||
GZ5S |
100 |
140 |
150 |
12.7 |
10.6 |
0.65 |
666 |
||||
GZ6S |
150 |
210 |
200 |
1.5 |
380 |
16.4 |
13.3 |
1.5 |
1246 |
||
GZ7S |
250 |
350 |
250 |
24.6 |
20 |
2.5 |
1963 |
||||
GZ8S |
400 |
560 |
300 |
39.4 |
32 |
4.0 |
3306 |
||||
封閉型Closed type |
GZ1F |
4 |
5.6 |
40 |
1.75 |
220 |
1.34 |
1.0 |
0.06 |
78 |
|
GZ2F |
8 |
11.2 |
40 |
3.0 |
2.3 |
0.15 |
154 |
||||
GZ3F |
20 |
28 |
60 |
4.6 |
3.8 |
0.20 |
247 |
||||
GZ4F |
40 |
50 |
60 |
8.4 |
7.0 |
0.45 |
464 |
||||
GZ5F |
80 |
112 |
80 |
12.7 |
10.6 |
0.65 |
668 |
||||
GZ6F |
120 |
168 |
80 |
1.5 |
380 |
16.4 |
13.3 |
1.5 |
1278 |
||
輕槽型Light groove |
GZ5Q |
100 |
140 |
200 |
1.75 |
220 |
12.7 |
10.6 |
0.65 |
653 |
|
GZ6Q |
150 |
200 |
250 |
1.5 |
380 |
16.4 |
13.3 |
1.5 |
1326 |
||
GZ7Q |
250 |
350 |
300 |
24.6 |
20 |
2.5 |
1992 |
||||
GZ8Q |
400 |
560 |
350 |
39.4 |
32 |
4.0 |
3046 |
||||
平槽型Level groove |
GZ5P |
50 |
140 |
100 |
1.75 |
220 |
12.7 |
10.6 |
0.65 |
633 |
|
GZ6P |
75 |
210 |
300 |
1.5 |
380 |
16.4 |
13.3 |
1.5 |
1238 |
||
GZ7P |
125 |
350 |
350 |
24.6 |
20 |
2.5 |
1858 |
||||
寬槽型Wide groove |
GZ5K1 |
200 |
100 |
1.5 |
220 |
12.7×2 |
10.6×2 |
0.65×2 |
1212 |
||
GZ5K2 |
240 |
100 |
1343 |
||||||||
GZ5K3 |
270 |
100 |
1376 |
||||||||
GZ5K4 |
300 |
100 |
1408 |
?
